This file contains routines which define, configure and allow use of Controller Area Network (CAN) service on the target hardware (hwxxxx) More...

#include "esos.h"
#include "esos_hwxxx.h"

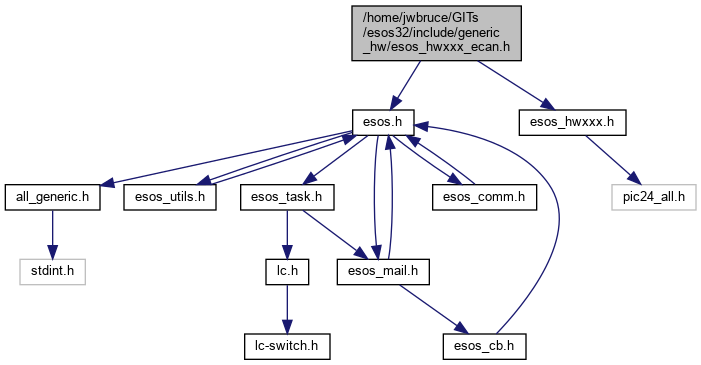

Include dependency graph for esos_hwxxx_ecan.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	__ESOS_ECAN_HW_NUM_TX_BUFS 1

#define	__ESOS_ECAN_HW_NUM_BUFS 8

#define	__ESOS_ECAN_HW_ARE_MESSAGES_WAITING() ( _DMA1IF )

#define	__ESOS_ECAN_HW_GET_BUFFER_ID() ( C1FIFO & 0x1F )

#define	__ESOS_ECAN_HW_TX_IN_PROGRESS() ( C1TR01CONbits.TXREQ0 )

Functions
void	__esos_ecan_hw_config_ecan (void)

void	__esos_ecan_hw_config_baud (void)

void	__esos_ecan_hw_config_rxFilter ()

void	__esos_ecan_hw_config_dma_tx (void)

void	__esos_ecan_hw_config_dma_rx (void)

void	__esos_ecan_hw_mark_message_received (uint16_t u16_rx_buff_id)

void	__esos_ecan_hw_format_and_send (ECANMSG *p_temp_Msg, uint16_t u16_can_id, uint8_t u8_payload_len)

Detailed Description

This file contains routines which define, configure and allow use of Controller Area Network (CAN) service on the target hardware (hwxxxx)

Definition in file esos_hwxxx_ecan.h.

Macros
