Embedded Systems Operating System 32 bit (ESOS32) definitions to make ESOS32 code more generic and portable. More...

#include <stdint.h>

Include dependency graph for all_generic.h:

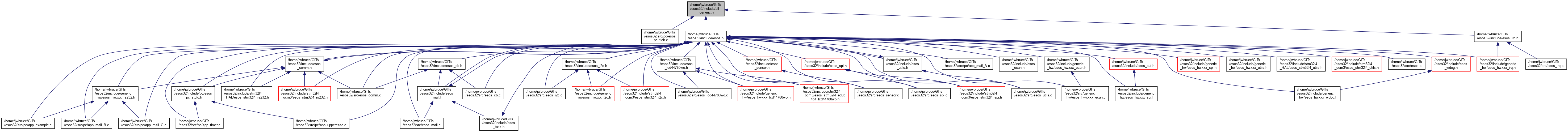

This graph shows which files directly or indirectly include this file:

Data Structures
union	_UINT8

union	_UINT16

union	_UINT32

Macros
#define	HELLO_MSG "\n" __FILE__ ", built on " __DATE__ " at " __TIME__ "\n"

#define	LSB(a)

#define	MSB(a)

#define	LOWER_WORD(a)

#define	UPPER_WORD(a)

#define	LOWER_LSB(a)

#define	LOWER_MSB(a)

#define	UPPER_LSB(a)

#define	UPPER_MSB(a)

#define	OK TRUE

#define	FAIL FALSE

#define	ON TRUE

#define	OFF FALSE

#define	HIGH TRUE

#define	LOW FALSE

#define	ENABLE TRUE

#define	DISABLE FALSE

#define	NULLPTR 0

#define	NULLIDX 0xFF

#define	ESOS_BIT0 0x0001

#define	ESOS_BIT1 0x0002

#define	ESOS_BIT2 0x0004

#define	ESOS_BIT3 0x0008

#define	ESOS_BIT4 0x0010

#define	ESOS_BIT5 0x0020

#define	ESOS_BIT6 0x0040

#define	ESOS_BIT7 0x0080

#define	ESOS_BIT8 0x0100

#define	ESOS_BIT9 0x0200

#define	ESOS_BIT10 0x0400

#define	ESOS_BIT11 0x0800

#define	ESOS_BIT12 0x1000

#define	ESOS_BIT13 0x2000

#define	ESOS_BIT14 0x4000

#define	ESOS_BIT15 0x8000

#define	ESOS_BIT16 0x00010000

#define	ESOS_BIT17 0x00020000

#define	ESOS_BIT18 0x00040000

#define	ESOS_BIT19 0x00080000

#define	ESOS_BIT20 0x00100000

#define	ESOS_BIT21 0x00200000

#define	ESOS_BIT22 0x00400000

#define	ESOS_BIT23 0x00800000

#define	ESOS_BIT24 0x01000000

#define	ESOS_BIT25 0x02000000

#define	ESOS_BIT26 0x04000000

#define	ESOS_BIT27 0x08000000

#define	ESOS_BIT28 0x10000000

#define	ESOS_BIT29 0x20000000

#define	ESOS_BIT30 0x40000000

#define	ESOS_BIT31 0x80000000

#define	BIT_SET_MASK(var, mask)

#define	BIT_CLEAR_MASK(var, mask)

#define	BIT_TOGGLE_MASK(var, mask)

#define	IS_BIT_SET_MASK(var, mask)

#define	IS_BIT_CLEAR_MASK(var, mask)

#define	BIT_SET(var, bitnum)

#define	BIT_CLEAR(var, bitnum)

#define	BIT_TOGGLE(var, bitnum)

#define	IS_BIT_SET(var, bitnum)

#define	IS_BIT_CLEAR(var, bitnum)

Typedefs
typedef union _UINT8	UINT8

typedef union _UINT16	UINT16

typedef union _UINT32	UINT32

typedef enum _BOOL	BOOL

Enumerations
enum	_BOOL { FALSE = 0, TRUE }

Detailed Description

Embedded Systems Operating System 32 bit (ESOS32) definitions to make ESOS32 code more generic and portable.

Note: This file is to be included in ESOS32 builds on all platforms.

Definition in file all_generic.h.

Macro Definition Documentation

◆ BIT_CLEAR

#define BIT_CLEAR	(	var,
		bitnum
	)

Clears a single bit in a variable

Parameters

var	variable
bitnum	Number (0-?) of the bit that should be cleared

Definition at line 628 of file all_generic.h.

◆ BIT_CLEAR_MASK

#define BIT_CLEAR_MASK	(	var,
		mask
	)

Clear the bits of a variable according to a mask

Parameters

var	variable containing the bits to "clear"
mask	varable with ONEs in the locations where you want to clear bits

Definition at line 586 of file all_generic.h.

◆ BIT_SET

#define BIT_SET	(	var,
		bitnum
	)

Sets a single bit in a variable

Parameters

var	variable
bitnum	Number (0-?) of the bit that should be set

Definition at line 621 of file all_generic.h.

◆ BIT_SET_MASK

#define BIT_SET_MASK	(	var,
		mask
	)

Sets the bits of a variable according to a mask

Parameters

var	variable containing the bits to "set"
mask	varable with ONEs in the locations where you want to set bits

Definition at line 579 of file all_generic.h.

◆ BIT_TOGGLE

#define BIT_TOGGLE	(	var,
		bitnum
	)

Toggle a single bit in a variable

Parameters

var	variable
bitnum	Number (0-?) of the bit that should be toggleed

Definition at line 635 of file all_generic.h.

◆ BIT_TOGGLE_MASK

#define BIT_TOGGLE_MASK	(	var,
		mask
	)

Toggle the bits of a variable according to a mask

Parameters

var	variable containing the bits to "toggle"
mask	varable with ONEs in the locations where you want to toggle bits

Definition at line 593 of file all_generic.h.

◆ ESOS_BIT0

#define ESOS_BIT0 0x0001

Mask to represent bit 0 (the LSb)

Definition at line 446 of file all_generic.h.

◆ ESOS_BIT1

#define ESOS_BIT1 0x0002

Mask to represent bit 1

Definition at line 450 of file all_generic.h.

◆ ESOS_BIT10

#define ESOS_BIT10 0x0400

Mask to represent bit 10

Definition at line 486 of file all_generic.h.

◆ ESOS_BIT11

#define ESOS_BIT11 0x0800

Mask to represent bit 11

Definition at line 490 of file all_generic.h.

◆ ESOS_BIT12

#define ESOS_BIT12 0x1000

Mask to represent bit 12

Definition at line 494 of file all_generic.h.

◆ ESOS_BIT13

#define ESOS_BIT13 0x2000

Mask to represent bit 13

Definition at line 498 of file all_generic.h.

◆ ESOS_BIT14

#define ESOS_BIT14 0x4000

Mask to represent bit 14

Definition at line 502 of file all_generic.h.

◆ ESOS_BIT15

#define ESOS_BIT15 0x8000

Mask to represent bit 15 (the MSb of an uint16)

Definition at line 506 of file all_generic.h.

◆ ESOS_BIT16

#define ESOS_BIT16 0x00010000

Mask to represent bit 16

Definition at line 510 of file all_generic.h.

◆ ESOS_BIT17

#define ESOS_BIT17 0x00020000

Mask to represent bit 17

Definition at line 514 of file all_generic.h.

◆ ESOS_BIT18

#define ESOS_BIT18 0x00040000

Mask to represent bit 18

Definition at line 518 of file all_generic.h.

◆ ESOS_BIT19

#define ESOS_BIT19 0x00080000

Mask to represent bit 19

Definition at line 522 of file all_generic.h.

◆ ESOS_BIT2

#define ESOS_BIT2 0x0004

Mask to represent bit 2

Definition at line 454 of file all_generic.h.

◆ ESOS_BIT20

#define ESOS_BIT20 0x00100000

Mask to represent bit 20

Definition at line 526 of file all_generic.h.

◆ ESOS_BIT21

#define ESOS_BIT21 0x00200000

Mask to represent bit 21

Definition at line 530 of file all_generic.h.

◆ ESOS_BIT22

#define ESOS_BIT22 0x00400000

Mask to represent bit 22

Definition at line 534 of file all_generic.h.

◆ ESOS_BIT23

#define ESOS_BIT23 0x00800000

Mask to represent bit 23

Definition at line 538 of file all_generic.h.

◆ ESOS_BIT24

#define ESOS_BIT24 0x01000000

Mask to represent bit 24

Definition at line 542 of file all_generic.h.

◆ ESOS_BIT25

#define ESOS_BIT25 0x02000000

Mask to represent bit 25

Definition at line 546 of file all_generic.h.

◆ ESOS_BIT26

#define ESOS_BIT26 0x04000000

Mask to represent bit 26

Definition at line 550 of file all_generic.h.

◆ ESOS_BIT27

#define ESOS_BIT27 0x08000000

Mask to represent bit 27

Definition at line 554 of file all_generic.h.

◆ ESOS_BIT28

#define ESOS_BIT28 0x10000000

Mask to represent bit 28

Definition at line 558 of file all_generic.h.

◆ ESOS_BIT29

#define ESOS_BIT29 0x20000000

Mask to represent bit 29

Definition at line 562 of file all_generic.h.

◆ ESOS_BIT3

#define ESOS_BIT3 0x0008

Mask to represent bit 3

Definition at line 458 of file all_generic.h.

◆ ESOS_BIT30

#define ESOS_BIT30 0x40000000

Mask to represent bit 30

Definition at line 566 of file all_generic.h.

◆ ESOS_BIT31

#define ESOS_BIT31 0x80000000

Mask to represent bit 31 (the MSb of an uint32)

Definition at line 570 of file all_generic.h.

◆ ESOS_BIT4

#define ESOS_BIT4 0x0010

Mask to represent bit 4

Definition at line 462 of file all_generic.h.

◆ ESOS_BIT5

#define ESOS_BIT5 0x0020

Mask to represent bit 5

Definition at line 466 of file all_generic.h.

◆ ESOS_BIT6

#define ESOS_BIT6 0x0040

Mask to represent bit 6

Definition at line 470 of file all_generic.h.

◆ ESOS_BIT7

#define ESOS_BIT7 0x0080

Mask to represent bit 7 (the MSb of a uint8)

Definition at line 474 of file all_generic.h.

◆ ESOS_BIT8

#define ESOS_BIT8 0x0100

Mask to represent bit 8 (the LSb of the most-significant byte in an uint8)

Definition at line 478 of file all_generic.h.

◆ ESOS_BIT9

#define ESOS_BIT9 0x0200

Mask to represent bit 9

Definition at line 482 of file all_generic.h.

◆ FAIL

#define FAIL FALSE

another way to say FALSE

Definition at line 416 of file all_generic.h.

◆ IS_BIT_CLEAR

#define IS_BIT_CLEAR	(	var,
		bitnum
	)

Determine if a bit is cleared in a variable

Parameters

var	variable containing the bits to test
bitnum	Number (0-?) of the bit to test for being cleared

Return values

TRUE	if the bit is clear
FALSE	otherwise

Definition at line 653 of file all_generic.h.

◆ IS_BIT_CLEAR_MASK

#define IS_BIT_CLEAR_MASK	(	var,
		mask
	)

Determine if one or more bits are cleared in a variable

Parameters

var	variable containing the bits to test
mask	varable with ONEs in the locations where you want to check for cleared bits

Return values

TRUE	if one or more of the mask bits are cleared in the variable
FALSE	if none of the mask bits are cleared

Note: Does NOT test to see if you variable has ALL mask bits cleared

Definition at line 613 of file all_generic.h.

◆ IS_BIT_SET

#define IS_BIT_SET	(	var,
		bitnum
	)

Determine if a bit is set in a variable

Parameters

var	variable containing the bits to test
bitnum	Number (0-?) of the bit to test for being set

Return values

TRUE	if the bit is set
FALSE	otherwise

Definition at line 644 of file all_generic.h.

◆ IS_BIT_SET_MASK

#define IS_BIT_SET_MASK	(	var,
		mask
	)

Determine if one or more bits are set in a variable

Parameters

var	variable containing the bits to test
mask	varable with ONEs in the locations where you want to check for set bits

Return values

TRUE	if one or more of the mask bits are set in the variable
FALSE	if none of the mask bits are set

Note: Does NOT test to see if you variable has ALL mask bits set

Definition at line 603 of file all_generic.h.

◆ LOWER_LSB

#define LOWER_LSB ( a )

Returns the Least-Significant-BYTE (uint8) of a UINT32 structure

Parameters

a	UINT32 structure holding a 32-bit value

Returns: Byte 0 (LSB) of the 32-bit value in the UINT32 struct

Definition at line 378 of file all_generic.h.

◆ LOWER_MSB

#define LOWER_MSB ( a )

Returns the 2nd most least-Significant-BYTE (uint8) of a UINT32 structure

Parameters

a	UINT32 structure holding a 32-bit value

Returns: Byte 1 of the 32-bit value in the UINT32 struct

Definition at line 385 of file all_generic.h.

◆ LOWER_WORD

#define LOWER_WORD ( a )

Returns the Least-Significant-WORD (uint16) of a UINT32 structure

Parameters

a	UINT32 structure holding a 32-bit value

Returns: LSW of the 32-bit value in the UINT32 struct

Definition at line 364 of file all_generic.h.

◆ LSB

#define LSB ( a )

Returns the Least-Significant-Byte (LSB)

Parameters

a	UINT16 structure holding a 16-bit value

Returns: LSB of the 16-bit value in the UINT16 struct

Definition at line 198 of file all_generic.h.

◆ MSB

#define MSB ( a )

Returns the Most-Significant-Byte (MSB)

Parameters

a	UINT16 structure holding a 16-bit value

Returns: MSB of the 16-bit value in the UINT16 struct

Definition at line 205 of file all_generic.h.

◆ NULLIDX

#define NULLIDX 0xFF

An unitialized index value

Definition at line 437 of file all_generic.h.

◆ NULLPTR

#define NULLPTR 0

An uninitialized pointer

Definition at line 435 of file all_generic.h.

◆ OK

#define OK TRUE

another way to say TRUE

Definition at line 414 of file all_generic.h.

◆ UPPER_LSB

#define UPPER_LSB ( a )

Returns the 3nd most least-Significant-BYTE (uint8) of a UINT32 structure

Parameters

a	UINT32 structure holding a 32-bit value

Returns: Byte 2 of the 32-bit value in the UINT32 struct

Definition at line 392 of file all_generic.h.

◆ UPPER_MSB

#define UPPER_MSB ( a )

Returns the Most-Significant-BYTE (uint8) of a UINT32 structure

Parameters

a	UINT32 structure holding a 32-bit value

Returns: Byte 3 (MSB) of the 32-bit value in the UINT32 struct

Definition at line 399 of file all_generic.h.

◆ UPPER_WORD

#define UPPER_WORD ( a )

Returns the Most-Significant-WORD (uint16) of a UINT32 structure

Parameters

a	UINT32 structure holding a 32-bit value

Returns: MSW of the 32-bit value in the UINT32 struct

Definition at line 371 of file all_generic.h.

Typedef Documentation

◆ BOOL

typedef enum _BOOL BOOL

A single bit quantity. Takes on the value TRUE or FALSE.

◆ UINT16

typedef union _UINT16 UINT16

Union structure to hold uint16s to provide access to 16-bit data with different "viewpoints" (or casts, if you will).

Note: Works on machines that store their data little-endian. If you use big-endian, the members will have to be reordered!; Prefix for all UINT16 structs is U16_
uint8_t u8_a, u8_b;

UINT16 U16_y;

U16_y._uint16 = 0xF00D;

u8_b = U16_y.u8Bytes[0]; // u8_b equals 0x0D

u8_a = U16_y.u8MSb; // u8_a equals 0xF0

while (U16_y.b7); // falls through since bit 7 is 0 (FALSE)

◆ UINT32

typedef union _UINT32 UINT32

Union structure to hold an uint32 to provide access to 32-bit data with different "viewpoints" (or casts, if you will).

Note: Works on machines that store their data little-endian. If you use big-endian, the members will have to be reordered!; Prefix for all UINT32 structs is U32_
UINT32 U32_x;

uint16 u16_a;

uint8 u8_b;

UINT16 U16_y;

U32_x._uint32 = 0xDEADBEEF;

u16_a = U32_x.u16LoWord; // u16_a equals 0xBEEF

u8_b = U32_x.u8Bytes[0]; // u8_b equals 0xEF

u16_a = U32_x.u16Words[1]; // u16_a equals 0xDEAD

U16_y._uint16 = U32_x.u16LoWord; // where's the "BEEF"?

u8_b = U16_y.uMSb; // u8_b equals 0xBE

while (U32_x.b31); // infinite loop

◆ UINT8

typedef union _UINT8 UINT8

Union structure to hold an uint8 (byte) to provide access to 8-bit data with different "viewpoints" (or casts, if you will).

Note: Works on machines that store their data little-endian. If you use big-endian, the members will have to be reordered!; Prefix for all UINT8 structs is U8_

Enumeration Type Documentation

◆ _BOOL

enum _BOOL

A single bit quantity. Takes on the value TRUE or FALSE.

Enumerator
FALSE	False, not true, off, zero
TRUE	True, not false, on, one

Definition at line 406 of file all_generic.h.

Data Structures

Macros

Typedefs

Enumerations

Detailed Description

Macro Definition Documentation

◆ BIT_CLEAR

◆ BIT_CLEAR_MASK

◆ BIT_SET

◆ BIT_SET_MASK

◆ BIT_TOGGLE

◆ BIT_TOGGLE_MASK

◆ ESOS_BIT0

◆ ESOS_BIT1

◆ ESOS_BIT10

◆ ESOS_BIT11

◆ ESOS_BIT12

◆ ESOS_BIT13

◆ ESOS_BIT14

◆ ESOS_BIT15

◆ ESOS_BIT16

◆ ESOS_BIT17

◆ ESOS_BIT18

◆ ESOS_BIT19

◆ ESOS_BIT2

◆ ESOS_BIT20

◆ ESOS_BIT21

◆ ESOS_BIT22

◆ ESOS_BIT23

◆ ESOS_BIT24

◆ ESOS_BIT25

◆ ESOS_BIT26

◆ ESOS_BIT27

◆ ESOS_BIT28

◆ ESOS_BIT29

◆ ESOS_BIT3

◆ ESOS_BIT30

◆ ESOS_BIT31

◆ ESOS_BIT4

◆ ESOS_BIT5

◆ ESOS_BIT6

◆ ESOS_BIT7

◆ ESOS_BIT8

◆ ESOS_BIT9

◆ FAIL

◆ IS_BIT_CLEAR

◆ IS_BIT_CLEAR_MASK

◆ IS_BIT_SET

◆ IS_BIT_SET_MASK

◆ LOWER_LSB

◆ LOWER_MSB

◆ LOWER_WORD

◆ LSB

◆ MSB

◆ NULLIDX

◆ NULLPTR

◆ OK

◆ UPPER_LSB

◆ UPPER_MSB

◆ UPPER_WORD

Typedef Documentation

◆ BOOL

◆ UINT16

◆ UINT32

◆ UINT8

Enumeration Type Documentation

◆ _BOOL
