This file contains templates for routines which define, configure and allow use of the SPI service on the target hardware (hwxxxx) More...

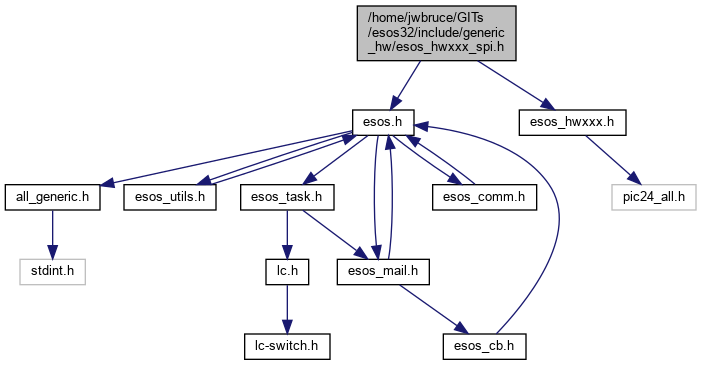

Include dependency graph for esos_hwxxx_spi.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | DISABLE_SCK_PIN 0x1000 /* SCK pin is not used by module */ |
| #define | ENABLE_SCK_PIN 0x0000 /* SCK pin is used by module */ |
| #define | SCK_PIN_MASK (~DISABLE_SCK_PIN) |
| #define | DISABLE_SDO_PIN 0x0800 /* SDO pin is not used by module */ |
| #define | ENABLE_SDO_PIN 0x0000 /* SDO pin is used by module */ |
| #define | SDO_PIN_MASK (~DISABLE_SDO_PIN) |
| #define | SPI_MODE16_ON 0x0400 /* Communication is word wide */ |
| #define | SPI_MODE8_ON 0x0000 /* Communication is byte wide */ |
| #define | SPI_MODE_MASK (~SPI_MODE16_ON) |
| #define | SPI_SMP_ON 0x0200 /* Input data sampled at end of data output time */ |
| #define | SPI_SMP_OFF 0x0000 /* Input data sampled at middle of data output time */ |
| #define | SPI_SMP_MASK (~SPI_SMP_ON) |
| #define | SPI_CKE_ON 0x0100 /* Transmit happens from active clock state to idle clock state*/ |
| #define | SPI_CKE_OFF 0x0000 /* Transmit happens on transition from idle clock state to active clock state */ |
| #define | SPI_CKE_MASK (~SPI_CKE_ON) |
| #define | SLAVE_ENABLE_ON 0x0080 /* Slave Select enbale */ |
| #define | SLAVE_ENABLE_OFF 0x0000 /* Slave Select not used by module */ |
| #define | SLAVE_ENABLE_MASK (~SLAVE_ENABLE_ON) |
| #define | CLK_POL_ACTIVE_LOW 0x0040 /* Idle state for clock is high, active is low */ |
| #define | CLK_POL_ACTIVE_HIGH 0x0000 /* Idle state for clock is low, active is high */ |
| #define | CLK_POL_ACTIVE_MASK (~CLK_POL_ACTIVE_LOW) |
| #define | MASTER_ENABLE_ON 0x0020 /* Master Mode */ |
| #define | MASTER_ENABLE_OFF 0x0000 /* Slave Mode */ |
| #define | MASTER_ENABLE_MASK (~MASTER_ENABLE_ON) |
| #define | SEC_PRESCAL_1_1 0x001c /* Secondary Prescale 1:1 */ |
| #define | SEC_PRESCAL_2_1 0x0018 /* Secondary Prescale 2:1 */ |
| #define | SEC_PRESCAL_3_1 0x0014 /* Secondary Prescale 3:1 */ |
| #define | SEC_PRESCAL_4_1 0x0010/* Secondary Prescale 4:1 */ |
| #define | SEC_PRESCAL_5_1 0x000c /* Secondary Prescale 5:1 */ |
| #define | SEC_PRESCAL_6_1 0x0008/* Secondary Prescale 6:1 */ |
| #define | SEC_PRESCAL_7_1 0x0004 /* Secondary Prescale 7:1 */ |
| #define | SEC_PRESCAL_8_1 0x0000 /* Secondary Prescale 8:1 */ |
| #define | SEC_PRESCAL_MASK (~SEC_PRESCAL_1_1) |
| #define | PRI_PRESCAL_1_1 0x0003 /* Primary Prescale 1:1 */ |
| #define | PRI_PRESCAL_4_1 0x0002 /* Primary Prescale 4:1 */ |
| #define | PRI_PRESCAL_16_1 0x0001 /* Primary Prescale 16:1 */ |
| #define | PRI_PRESCAL_64_1 0x0000 /* Primary Prescale 64:1 */ |
| #define | PRI_PRESCAL_MASK (~PRI_PRESCAL_1_1) |
| #define | SPI_ENABLE 0x8000 /* Enable module */ |
| #define | SPI_DISABLE 0x0000 /* Disable module */ |
| #define | SPI_ENBL_DSBL_MASK (~SPI_ENABLE) |
| #define | SPI_IDLE_STOP 0x2000 /* Discontinue module operation in idle mode */ |
| #define | SPI_IDLE_CON 0x0000 /* Continue module operation in idle mode */ |
| #define | SPI_IDLE_MASK (~SPI_IDLE_STOP) |
| #define | SPI_RX_OVFLOW 0x0040 |
| #define | SPI_RX_OVFLOW_CLR 0x0000 /* Clear receive overflow bit */ |
| #define | SPI_TX_BUFFER_FULL 0x0002 /* TX not started yet; SPIxTXB is full */ |
| #define | SPI_TX_BUFFER_FULL_CLR (~SPI_TX_BUFFER_FULL) /* TX underway; SPIxTXB is empty */ |
| #define | SPI_RX_BUFFER_FULL 0x0001 /* RX complete; SPIxRXB is full */ |
| #define | SPI_RX_BUFFER_FULL_CLR (~SPI_RX_BUFFER_FULL) /* RX complete; SPIxRXB is full */ |
| #define | FRAME_ENABLE_ON 0x8000 /* Frame SPI support enable */ |
| #define | FRAME_ENABLE_OFF 0x0000 /* Frame SPI support Disable */ |
| #define | FRAME_ENABLE_MASK (~FRAME_ENABLE_ON) |
| #define | FRAME_SYNC_INPUT 0x4000 /* Frame sync pulse Input (slave) */ |
| #define | FRAME_SYNC_OUTPUT 0x0000 /* Frame sync pulse Output (master)*/ |
| #define | FRAME_SYNC_MASK (~FRAME_SYNC_INPUT) |
| #define | FRAME_SYNC_ACTIVE_HIGH 0x2000 /* Frame sync pulse Input (slave) */ |
| #define | FRAME_SYNC_ACTIVE_LOW 0x0000 /* Frame sync pulse Output (master)*/ |
| #define | FRAME_SYNC_POL_MASK (~FRAME_SYNC_ACTIVE_HIGH) |
| #define | SPI_FRM_PULSE_FIRST_CLK 0x0002 /* frame pulse coincides with the first bit clock */ |
| #define | SPI_FRM_PULSE_PREV_CLK 0x0000 /* frame pulse precedes the first bit clock */ |
| #define | SPI_FRM_PULSE_MASK (~SPI_FRM_PULSE_FIRST_CLK) |
| #define | SPI_ENH_BUFF_ENABLE 0x0001 /* enable enhanced buffer */ |
| #define | SPI_ENH_BUFF_DISABLE 0x0000 /* disable enhanced buffer */ |
| #define | SPI_ENH_BUFF_MASK (~SPI_ENH_BUFF_ENABLE) |
| #define | ESOS_TASK_WAIT_ON_AVAILABLE_SPI() |
| #define | ESOS_TASK_SIGNAL_AVAILABLE_SPI() __esos_ClearSystemFlag(__ESOS_SYS_SPI_IS_BUSY) |
| #define | ESOS_TASK_WAIT_ON_WRITE1SPI1(u16_d1) |
| #define | ESOS_TASK_WAIT_ON_WRITE2SPI1(u16_d1, u16_d2) |
| #define | ESOS_TASK_WAIT_ON_WRITENSPI1(pu16_out, u16_cnt) ESOS_TASK_SPAWN_AND_WAIT( (ESOS_TASK_HANDLE)&__stChildTaskSPI, __esos_hwxxx_xferNSPI1, (pu16_out), NULLPTR, (u16_cnt) ) |
| #define | ESOS_TASK_WAIT_ON_XFERNSPI1(pu16_out, pu16_in, u16_cnt) ESOS_TASK_SPAWN_AND_WAIT( (ESOS_TASK_HANDLE)&__stChildTaskSPI, __esos_hwxxx_xferNSPI1, (pu16_out), (pu16_in), (u16_cnt) ) |
| #define | ESOS_TASK_WAIT_ON_READ1SPI1(u16_d1) |
| #define | ESOS_TASK_WAIT_ON_READ2SPI1(u16_d1, u16_d2) |
| #define | ESOS_TASK_WAIT_ON_READNSPI1(pu16_in, u16_cnt) ESOS_TASK_SPAWN_AND_WAIT( (ESOS_TASK_HANDLE)&__stChildTaskSPI, __esos_hwxxx_xferNSPI1, NULLPTR, (pu16_in), (u16_cnt) ) |
Functions | |
| ESOS_CHILD_TASK (__esos_hwxxx_xferNSPI1, uint16_t *pu16_out, uint16_t *pu16_in, uint16_t u16_cnt) | |
Variables | |
| struct stTask | __stChildTaskSPI |
| uint16_t | __esos_spi_u16s [2] |
Detailed Description
This file contains templates for routines which define, configure and allow use of the SPI service on the target hardware (hwxxxx)
Definition in file esos_hwxxx_spi.h.
