Central code for Embedded Systems Operating System 32-bit (ESOS32) More...
#include "esos.h"

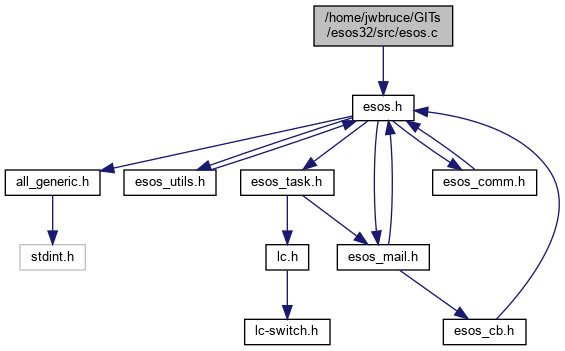

Include dependency graph for esos.c:
Go to the source code of this file.
Functions | |
| ESOS_TASK_HANDLE | esos_RegisterTask (uint8_t(*taskname)(ESOS_TASK_HANDLE pstTask)) |
| uint8_t | esos_UnregisterTask (uint8_t(*taskname)(ESOS_TASK_HANDLE pstTask)) |
| ESOS_TASK_HANDLE | esos_GetTaskHandle (uint8_t(*taskname)(ESOS_TASK_HANDLE pstTask)) |
| ESOS_TASK_HANDLE | esos_GetTaskHandleFromID (uint16_t u16_TaskID) |
| ESOS_TASK_HANDLE | esos_GetFreeChildTaskStruct () |
| uint8_t | esos_GetMaxNumberTasks (void) |
| uint16_t | __esos_hasTickDurationPassed (uint32_t u32_startTick, uint32_t u32_period) |
| void | __esos_tmrSvcsExecute (void) |
| ESOS_TMR_HANDLE | esos_RegisterTimer (void(*timername)(void), uint32_t u32_period) |
| uint8_t | esos_UnregisterTimer (ESOS_TMR_HANDLE hnd_timer) |
| ESOS_TMR_HANDLE | esos_GetTimerHandle (void(*pfnTmrFcn)(void)) |
| uint8_t | esos_ChangeTimerPeriod (ESOS_TMR_HANDLE hnd_timer, uint32_t u32_period) |
| void | __esosInit (void) |
| main_t | main (void) |
Variables | |
| struct stTask | __astUserTaskPool [MAX_NUM_USER_TASKS] |
| uint8_t | __au8UserTaskStructIndex [MAX_NUM_USER_TASKS] |
| struct stTask | __astChildTaskPool [MAX_NUM_CHILD_TASKS] |
| uint8_t | __u8UserTasksRegistered |
| uint8_t | __u8ChildTasksRegistered |
| uint16_t | __u16NumTasksEverCreated |
| struct stTimer | __astTmrSvcs [MAX_NUM_TMRS] |
| uint8_t | __esos_u8TmrSvcsRegistered |
| uint32_t | __esos_u32TmrActiveFlags |
| MAILBOX | __astMailbox [MAX_NUM_USER_TASKS] |
| uint8_t | __au8_MBData [MAX_NUM_USER_TASKS][MAX_SIZE_TASK_MAILBOX] |
| CBUFFER | __astCircularBuffers [MAX_NUM_USER_TASKS] |
| uint32_t | __esos_u32UserFlags |
| uint32_t | __esos_u32SystemFlags |
Detailed Description
Central code for Embedded Systems Operating System 32-bit (ESOS32)
Definition in file esos.c.
Function Documentation
◆ esos_ChangeTimerPeriod()
| uint8_t esos_ChangeTimerPeriod | ( | ESOS_TMR_HANDLE | hnd_timer, |
| uint32_t | u32_period | ||
| ) |
Change a timer period.
- Parameters
-
hnd_timer handle to timer whose period is to be changed u32_period new period for timer selected by mask
- Return values
-
FALSE if timer is not currently running TRUE if timer period was changed
◆ esos_GetFreeChildTaskStruct()
| ESOS_TASK_HANDLE esos_GetFreeChildTaskStruct | ( | ) |
◆ esos_GetMaxNumberTasks()
| uint8_t esos_GetMaxNumberTasks | ( | void | ) |
◆ esos_GetTaskHandle()
| ESOS_TASK_HANDLE esos_GetTaskHandle | ( | uint8_t(*)(ESOS_TASK_HANDLE pstTask) | taskname | ) |
Find the (active) task handle for a given task function
- Parameters
-
taskname name of task (argument to ESOS_USER_TASK declaration
- Return values
-
NULLPTR if task is not found among the active tasks TaskHandle the handle to the task function requested
◆ esos_GetTaskHandleFromID()
| ESOS_TASK_HANDLE esos_GetTaskHandleFromID | ( | uint16_t | u16_TaskID | ) |
Find the (active) task handle for a given task function
- Parameters
-
u16_TaskID name of task (argument to ESOS_USER_TASK declaration)
- Return values
-
NULLPTR if task is not found among the active tasks TaskHandle the handle to the task function requested
◆ esos_GetTimerHandle()
| ESOS_TMR_HANDLE esos_GetTimerHandle | ( | void(*)(void) | pfnTmrFcn | ) |
Finds the timer handle to the provided and ACTIVE timer function
- Parameters
-
pfnTmrFcn pointer to timer function (will execute each time timer expires)
- Return values
-
ESOS_TMR_FAILURE could not find the function in the active timer list timerHandle handle to timer
◆ esos_RegisterTask()
| ESOS_TASK_HANDLE esos_RegisterTask | ( | uint8_t(*)(ESOS_TASK_HANDLE pstTask) | taskname | ) |
Adds a task to the scheduler. Task will start executing at the next opportunity. (almost immediately)
- Parameters
-
taskname name of task (argument to ESOS_USER_TASK declaration
- Return values
-
NULLPTR if no more tasks can execute at this time (scheduler is full) TaskHandle the handle of the just registered and scheduled task
- See also
- ESOS_USER_TASK
- esos_UnregisterTask
◆ esos_RegisterTimer()
| ESOS_TMR_HANDLE esos_RegisterTimer | ( | void(*)(void) | timername, |
| uint32_t | u32_period | ||
| ) |
Adds a timer to the ESOS timer service. Timer function will execute at its next opportunity. Timer functions must have void arguments and void returns.
- Parameters
-
timername name under which timer was declared in ESOS_USER_TIMER. and contains the code to run when software timer expires u32_period period of timer in system ticks (currently, milliseconds)
- Return values
-
ESOS_TMR_FAILURE if no more timers can added at this time timerhandle if timer service was registered
◆ esos_UnregisterTask()
| uint8_t esos_UnregisterTask | ( | uint8_t(*)(ESOS_TASK_HANDLE pstTask) | taskname | ) |
Removes the task from the scheduler
- Parameters
-
taskname name of task (argument to ESOS_USER_TASK declaration
- Return values
-
TRUE if task was found in scheduler and removed FALSE otherwise
- See also
- ESOS_USER_TASK
- esos_RegisterTask
◆ esos_UnregisterTimer()
| uint8_t esos_UnregisterTimer | ( | ESOS_TMR_HANDLE | hnd_timer | ) |
Removes a timer from the ESOS timer service.
- Parameters
-
hnd_timer handle to timer to remove
- Return values
-
FALSE if timer wasn't active in the first place TRUE if timer was stopped and removed
