#include "all_generic.h"#include "esos_utils.h"#include "esos_task.h"#include "esos_mail.h"#include "esos_comm.h"

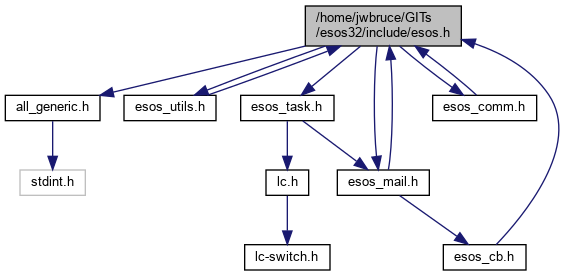

Include dependency graph for esos.h:

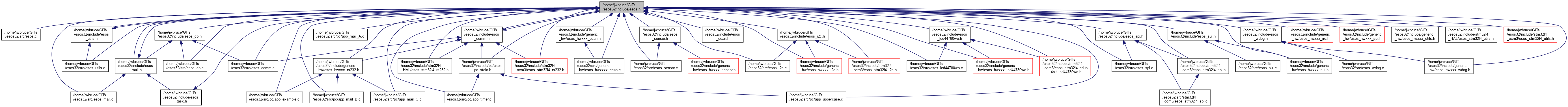

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | stMailBoxDesc |
| struct | stMailEnvelope |
| struct | stTimer |
Macros | |
| #define | BUILT_ON_ESOS |
| #define | MAX_NUM_USER_TASKS 32 |
| #define | ESOS_USE_SERIAL_PORT |
| #define | OS_END while(1) |
| #define | OS_ITERATE |
| #define | MAX_NUM_CHILD_TASKS MAX_NUM_USER_TASKS |
| #define | REMOVE_IDX 0xFE |
| #define | ESOS_USER_FLAG_0 |
| #define | ESOS_USER_FLAG_1 |
| #define | ESOS_USER_FLAG_2 |
| #define | ESOS_USER_FLAG_3 |
| #define | ESOS_USER_FLAG_4 |
| #define | ESOS_USER_FLAG_5 |
| #define | ESOS_USER_FLAG_6 |
| #define | ESOS_USER_FLAG_7 |
| #define | ESOS_USER_FLAG_8 |
| #define | ESOS_USER_FLAG_9 |
| #define | ESOS_USER_FLAG_10 |
| #define | ESOS_USER_FLAG_11 |
| #define | ESOS_USER_FLAG_12 |
| #define | ESOS_USER_FLAG_13 |
| #define | ESOS_USER_FLAG_14 |
| #define | ESOS_USER_FLAG_15 |
| #define | ESOS_USER_FLAG_16 |
| #define | ESOS_USER_FLAG_17 |
| #define | ESOS_USER_FLAG_18 |
| #define | ESOS_USER_FLAG_19 |
| #define | ESOS_USER_FLAG_20 |
| #define | ESOS_USER_FLAG_21 |
| #define | ESOS_USER_FLAG_22 |
| #define | ESOS_USER_FLAG_23 |
| #define | ESOS_USER_FLAG_24 |
| #define | ESOS_USER_FLAG_25 |
| #define | ESOS_USER_FLAG_26 |
| #define | ESOS_USER_FLAG_27 |
| #define | ESOS_USER_FLAG_28 |
| #define | ESOS_USER_FLAG_29 |
| #define | ESOS_USER_FLAG_30 |
| #define | ESOS_USER_FLAG_31 |
| #define | ESOS_USER_TIMER(timername) |
| #define | __MILLISECONDS_PER_TICK 1 |
| #define | MILLISECONDS __MILLISECONDS_PER_TICK |
| #define | SECONDS MILLISECONDS*1000 |
| #define | MINUTES SECONDS*60 |
| #define | HOURS MINUTES*60 |
| #define | DAYS HOURS*24 |
| #define | esos_GetSystemTick() |
| #define | esos_GetNumberRegisteredTasks() |
| #define | esos_GetFutureSystemTick(deltaT) |
| #define | esos_SetUserFlag(mask) |
| #define | esos_ClearUserFlag(mask) |
| #define | esos_IsUserFlagSet(mask) |
| #define | esos_IsUserFlagClear(mask) |
| #define | __esos_SetSystemFlag(mask) BIT_SET_MASK(__esos_u32SystemFlags, (mask)) |
| #define | __esos_ClearSystemFlag(mask) BIT_CLEAR_MASK(__esos_u32SystemFlags, (mask)) |
| #define | __esos_IsSystemFlagSet(mask) IS_BIT_SET_MASK(__esos_u32SystemFlags, (mask)) |
| #define | __esos_IsSystemFlagClear(mask) IS_BIT_CLEAR_MASK(__esos_u32SystemFlags, (mask)) |
| #define | ESOS_TMR_FAILURE 0xFF |
| #define | MAX_NUM_TMRS 16 |
| #define | esos_GetNumberRunningTimers() |
| #define | esos_IsTimerRunning(hndl) |
| #define | __esos_MarkTimerRunning(hndl) BIT_SET_MASK(__esos_u32TmrActiveFlags, (ESOS_BIT0<<(hndl))) |
| #define | __esos_MarkTimerStopped(hndl) BIT_CLEAR_MASK(__esos_u32TmrActiveFlags, (ESOS_BIT0<<(hndl))) |
| #define | __ESOS_SYS_FLAG_PACK_TASKS ESOS_BIT0 |
| #define | __ESOS_SYS_FLAG_NULL_LAST_TASK ESOS_BIT1 |
| #define | __ESOS_SYS_COMM_TX_IS_BUSY ESOS_BIT2 |
| #define | __ESOS_SYS_COMM_RX_IS_BUSY ESOS_BIT3 |
| #define | __ESOS_SYS_COMM_TX_ONGOING ESOS_BIT4 |
| #define | __ESOS_SYS_I2C_IN_USE ESOS_BIT8 |
| #define | __ESOS_SYS_SPI_IN_USE ESOS_BIT9 |
| #define | __ESOS_SYS_ADC_IN_USE ESOS_BIT10 |
| #define | __abs(x) (((x) < 0) ? -(x) : (x)) |
Typedefs | |
| typedef int | main_t |
| typedef uint8_t | ESOS_TMR_HANDLE |
Functions | |
| void | user_init (void) |
| ESOS_TASK_HANDLE | esos_RegisterTask (uint8_t(*pfn_TaskFcn)(struct stTask *pst_Task)) |
| uint8_t | esos_UnregisterTask (uint8_t(*pfn_TaskFcn)(struct stTask *pst_Task)) |
| ESOS_TASK_HANDLE | esos_GetFreeChildTaskStruct () |
| ESOS_TASK_HANDLE | esos_GetTaskHandle (uint8_t(*taskname)(ESOS_TASK_HANDLE pstTask)) |
| ESOS_TASK_HANDLE | esos_GetTaskHandleFromID (uint16_t u16_TaskID) |
| ESOS_TMR_HANDLE | esos_RegisterTimer (void(*pfnTmrFcn)(void), uint32_t u32_period) |
| uint8_t | esos_UnregisterTimer (ESOS_TMR_HANDLE hnd_timer) |
| ESOS_TMR_HANDLE | esos_GetTimerHandle (void(*pfnTmrFcn)(void)) |
| uint8_t | esos_ChangeTimerPeriod (ESOS_TMR_HANDLE hnd_timer, uint32_t u32_period) |
| void | __esos_hw_InitSystemTick (void) |
| uint32_t | __esos_hw_GetSystemTickCount (void) |
| uint32_t | __esos_hw_PRNG_u32 (void) |
| void | __esos_hw_config_PRNG (void) |
| void | __esos_hw_set_PRNG_Seed (uint32_t u32_seed) |
| uint16_t | __esos_hasTickDurationPassed (uint32_t u32_startTick, uint32_t u32_period) |
| void | __esos_tmrSvcsExecute (void) |
| void | __esos_InitCommSystem (void) |
Variables | |
| uint8_t | __esos_u8UserTasksRegistered |
| uint32_t | __esos_u32UserFlags |
| uint32_t | __esos_u32SystemFlags |
Detailed Description
Embedded Systems Operating System 32-bit (ESOS32)
Definition in file esos.h.
Macro Definition Documentation
◆ esos_ClearUserFlag
| #define esos_ClearUserFlag | ( | mask | ) |
Clears bits in the global user flags provided by ESOS
- Parameters
-
mask An uint16 value composed of the OR-ed user mask flag masks, where each flag in the OR will be cleared
- Note
- User should use the provided bits masks like ESOS_USER_FLAG_0 and ESOS_USER_FLAG_1 and ... ESOS_USER_FLAG_F to create their own readable constants #define HEADLIGHTS_ARE_ON ESOS_USER_FLAG_3#define MY_USER_FRIENDLY_FLAG ESOS_USER_FLAG_7esos_ClearUserFlag( HEADLIGHTS_ARE_ON | MY_USER_FRIENDLY_FLAG);
◆ esos_GetFutureSystemTick
| #define esos_GetFutureSystemTick | ( | deltaT | ) |
Returns the system tick value of a future time
- Parameters
-
deltaT the number of ticks in the future you'd like the system tick value for
- Returns
- The uint32 number corresponding to the system tick value of that future time
- See also
- esos_GetSystemTick
◆ esos_GetNumberRegisteredTasks
| #define esos_GetNumberRegisteredTasks | ( | ) |
Get the current number of user task registered with the ESOS scheduler.
- Returns
- The uint8_t number of currently registered user tasks
- Note
- This value does not include the number of child tasks (tasks of the type ESOS_CHILD_TASK ), just the tasks of the type ESOS_USER_TASK
◆ esos_GetNumberRunningTimers
| #define esos_GetNumberRunningTimers | ( | ) |
◆ esos_GetSystemTick
| #define esos_GetSystemTick | ( | ) |
Get the current value of the ESOS system tick counter In the current implementation of ESOS, a tick equal 1.0ms. Therefore, the value returned by this function is approximately equal to the number of milliseconds since the since was last reset.
- Returns
- The uint32 value of current value of the ESOS system tick counter
- Note
- This counter value will roll-over every 49.7 days.
◆ esos_IsTimerRunning
| #define esos_IsTimerRunning | ( | hndl | ) |
Determines if the software timer represented by the handle is currently running
- Parameters
-
hndl The ESOS_TMR_HANDLE of a software timer
- Return values
-
TRUE if the timer is currently running FALSE if the timer is not currently running
◆ esos_IsUserFlagClear
| #define esos_IsUserFlagClear | ( | mask | ) |
Queries whether the global user flags provided by ESOS are clear
- Parameters
-
mask An uint16 value composed of the OR-ed user mask flag masks, where each flag in the OR will be checked for being clear
- Return values
-
TRUE if at least one of the flags is clear FALSE if none of the flags are clear
- Note
- User should use the provided bits masks like ESOS_USER_FLAG_0 and ESOS_USER_FLAG_1 and ... ESOS_USER_FLAG_F to create their own readable constants #define HEADLIGHTS_ARE_ON ESOS_USER_FLAG_3#define MY_USER_FRIENDLY_FLAG ESOS_USER_FLAG_7esos_ClearUserFlag( HEADLIGHTS_ARE_ON | MY_USER_FRIENDLY_FLAG);
◆ esos_IsUserFlagSet
| #define esos_IsUserFlagSet | ( | mask | ) |
Queries whether the global user flags provided by ESOS are set
- Parameters
-
mask An uint16 value composed of the OR-ed user mask flag masks, where each flag in the OR will be checked for being set
- Return values
-
TRUE if at least one of the flags is set FALSE if none of the flags are set
- Note
- User should use the provided bits masks like ESOS_USER_FLAG_0 and ESOS_USER_FLAG_1 and ... ESOS_USER_FLAG_F to create their own readable constants #define HEADLIGHTS_ARE_ON ESOS_USER_FLAG_3#define MY_USER_FRIENDLY_FLAG ESOS_USER_FLAG_7esos_ClearUserFlag( HEADLIGHTS_ARE_ON | MY_USER_FRIENDLY_FLAG);
◆ esos_SetUserFlag
| #define esos_SetUserFlag | ( | mask | ) |
Sets bits in the global user flags provided by ESOS
- Parameters
-
mask An uint16 value composed of the OR-ed user mask flag masks, where each flag in the OR will be set
- Note
- User should use the provided bits masks like ESOS_USER_FLAG_0 to create their own readable constants #define HEADLIGHTS_ARE_ON ESOS_USER_FLAG_3#define MY_USER_FRIENDLY_FLAG ESOS_USER_FLAG_7esos_SetUserFlag( HEADLIGHTS_ARE_ON | MY_USER_FRIENDLY_FLAG);
◆ ESOS_USER_FLAG_0
| #define ESOS_USER_FLAG_0 |
◆ ESOS_USER_FLAG_1
| #define ESOS_USER_FLAG_1 |
◆ ESOS_USER_FLAG_10
| #define ESOS_USER_FLAG_10 |
◆ ESOS_USER_FLAG_11
| #define ESOS_USER_FLAG_11 |
◆ ESOS_USER_FLAG_12
| #define ESOS_USER_FLAG_12 |
◆ ESOS_USER_FLAG_13
| #define ESOS_USER_FLAG_13 |
◆ ESOS_USER_FLAG_14
| #define ESOS_USER_FLAG_14 |
◆ ESOS_USER_FLAG_15
| #define ESOS_USER_FLAG_15 |
◆ ESOS_USER_FLAG_16
| #define ESOS_USER_FLAG_16 |
◆ ESOS_USER_FLAG_17
| #define ESOS_USER_FLAG_17 |
◆ ESOS_USER_FLAG_18
| #define ESOS_USER_FLAG_18 |
◆ ESOS_USER_FLAG_19
| #define ESOS_USER_FLAG_19 |
◆ ESOS_USER_FLAG_2
| #define ESOS_USER_FLAG_2 |
◆ ESOS_USER_FLAG_20
| #define ESOS_USER_FLAG_20 |
◆ ESOS_USER_FLAG_21
| #define ESOS_USER_FLAG_21 |
◆ ESOS_USER_FLAG_22
| #define ESOS_USER_FLAG_22 |
◆ ESOS_USER_FLAG_23
| #define ESOS_USER_FLAG_23 |
◆ ESOS_USER_FLAG_24
| #define ESOS_USER_FLAG_24 |
◆ ESOS_USER_FLAG_25
| #define ESOS_USER_FLAG_25 |
◆ ESOS_USER_FLAG_26
| #define ESOS_USER_FLAG_26 |
◆ ESOS_USER_FLAG_27
| #define ESOS_USER_FLAG_27 |
◆ ESOS_USER_FLAG_28
| #define ESOS_USER_FLAG_28 |
◆ ESOS_USER_FLAG_29
| #define ESOS_USER_FLAG_29 |
◆ ESOS_USER_FLAG_3
| #define ESOS_USER_FLAG_3 |
◆ ESOS_USER_FLAG_30
| #define ESOS_USER_FLAG_30 |
◆ ESOS_USER_FLAG_31
| #define ESOS_USER_FLAG_31 |
◆ ESOS_USER_FLAG_4
| #define ESOS_USER_FLAG_4 |
◆ ESOS_USER_FLAG_5
| #define ESOS_USER_FLAG_5 |
◆ ESOS_USER_FLAG_6
| #define ESOS_USER_FLAG_6 |
◆ ESOS_USER_FLAG_7
| #define ESOS_USER_FLAG_7 |
◆ ESOS_USER_FLAG_8
| #define ESOS_USER_FLAG_8 |
◆ ESOS_USER_FLAG_9
| #define ESOS_USER_FLAG_9 |
◆ ESOS_USER_TIMER
| #define ESOS_USER_TIMER | ( | timername | ) |
Declaration of an user-defined timer callback (for ESOS timer services)
This macro is used to declare a user-timer. All timers using ESOS timer services must be declared with this macro.
- Parameters
-
timername The name of the software timer to create.
- Note
- You are really creating a C function implementing the user timer callback. Since ESOS timer serivces calls this callback function at the appropriate time, this function cannot be passed arguments and cannot return values
◆ MAX_NUM_CHILD_TASKS
| #define MAX_NUM_CHILD_TASKS MAX_NUM_USER_TASKS |
Define the maximum number of user tasks in the system
- Note
- Technically, this is actually the maximum number of tasks that will be running "concurrently". Usually, this number is the maximum number of tasks that the user has defined, UNLESS they are absolutely sure that two (or more) tasks are mutually exclusive in execution.
- BOTH "parent" and "child" tasks use this NUMBER to allocate their pool of tasks. So this number should be equal to or greater than the MAXIMUM number of concurrently running child –OR– parent tasks.
Typedef Documentation
◆ ESOS_TMR_HANDLE
| typedef uint8_t ESOS_TMR_HANDLE |
Handle to a software timer in the ESOS timer service.
◆ main_t
| typedef int main_t |
Function Documentation
◆ esos_ChangeTimerPeriod()
| uint8_t esos_ChangeTimerPeriod | ( | ESOS_TMR_HANDLE | hnd_timer, |
| uint32_t | u32_period | ||
| ) |
Change a timer period.
- Parameters
-
hnd_timer handle to timer whose period is to be changed u32_period new period for timer selected by mask
- Return values
-
FALSE if timer is not currently running TRUE if timer period was changed
◆ esos_GetFreeChildTaskStruct()
| ESOS_TASK_HANDLE esos_GetFreeChildTaskStruct | ( | ) |
◆ esos_GetTaskHandle()
| ESOS_TASK_HANDLE esos_GetTaskHandle | ( | uint8_t(*)(ESOS_TASK_HANDLE pstTask) | taskname | ) |
Find the (active) task handle for a given task function
- Parameters
-
taskname name of task (argument to ESOS_USER_TASK declaration
- Return values
-
NULLPTR if task is not found among the active tasks TaskHandle the handle to the task function requested
◆ esos_GetTaskHandleFromID()
| ESOS_TASK_HANDLE esos_GetTaskHandleFromID | ( | uint16_t | u16_TaskID | ) |
Find the (active) task handle for a given task function
- Parameters
-
u16_TaskID name of task (argument to ESOS_USER_TASK declaration)
- Return values
-
NULLPTR if task is not found among the active tasks TaskHandle the handle to the task function requested
◆ esos_GetTimerHandle()
| ESOS_TMR_HANDLE esos_GetTimerHandle | ( | void(*)(void) | pfnTmrFcn | ) |
Finds the timer handle to the provided and ACTIVE timer function
- Parameters
-
pfnTmrFcn pointer to timer function (will execute each time timer expires)
- Return values
-
ESOS_TMR_FAILURE could not find the function in the active timer list timerHandle handle to timer
◆ esos_RegisterTimer()
| ESOS_TMR_HANDLE esos_RegisterTimer | ( | void(*)(void) | timername, |
| uint32_t | u32_period | ||
| ) |
Adds a timer to the ESOS timer service. Timer function will execute at its next opportunity. Timer functions must have void arguments and void returns.
- Parameters
-
timername name under which timer was declared in ESOS_USER_TIMER. and contains the code to run when software timer expires u32_period period of timer in system ticks (currently, milliseconds)
- Return values
-
ESOS_TMR_FAILURE if no more timers can added at this time timerhandle if timer service was registered
◆ esos_UnregisterTimer()
| uint8_t esos_UnregisterTimer | ( | ESOS_TMR_HANDLE | hnd_timer | ) |
Removes a timer from the ESOS timer service.
- Parameters
-
hnd_timer handle to timer to remove
- Return values
-
FALSE if timer wasn't active in the first place TRUE if timer was stopped and removed
◆ user_init()
| void user_init | ( | void | ) |
User-provided function to initialize user's hardware configuration register user tasks.
- Note
- All ESOS applications MUST provide this function.
- This function MUST register at least one ESOS task.
- user_init() is a centralized initialization routine where the user can setup their application. It is called automagically by ES_OS during the operating system initialization.
- User should set up any state machines and init all application variables. They can also turn on any needed peripherals here.
- User shall not mess with the interrupt hardware directly!!! The ESOS must be aware of the interrupts and provides esos_XXXXXXX functions for the user to use. Using these ESOS-provided functions, the user may (and probably should) initialize, register, and enable interrupts in this routine.
- Furthermore, the user should register AT LEAST one user application task here via esos_RegisterTask or the ES_OS scheduler will have nothing to schedule to run when this function returns.
Definition at line 807 of file app_example.c.
