This file contains routines which define, configure and allow use of hardware interrupts on the target hardware (hwxxxx) More...

#include "esos.h"
#include "esos_irq.h"
#include "esos_hwxxx.h"

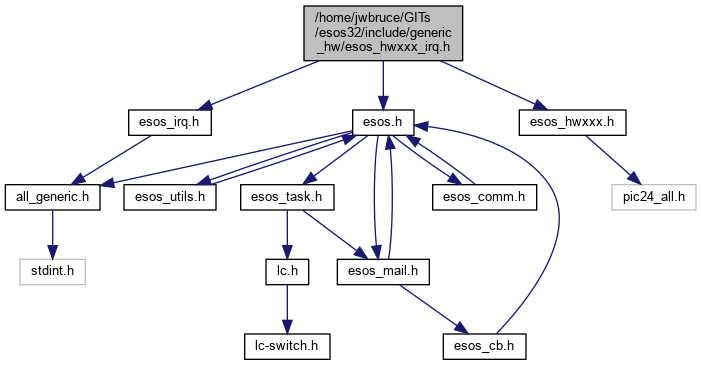

Include dependency graph for esos_hwxxx_irq.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	ESOS_USER_INTERRUPT(desc)

#define	__xESOS_USER_ISR(attrib, ivt, ifsr, ifsb, ipcr, ipcb) void _ISRFAST attrib (void)

#define	ESOS_USER_IRQ_LEVEL1

#define	ESOS_USER_IRQ_LEVEL2

#define	ESOS_USER_IRQ_LEVEL3

#define	ESOS_USER_IRQ_LEVEL4

#define	__ESOS_USER_IRQ_UNREGISTERED 0

#define	__ESOS_DISABLE_USER_IRQS_LEVEL ESOS_USER_IRQ_LEVEL2

#define	__ESOS_ENABLE_USER_IRQS_LEVEL __ESOS_USER_IRQ_UNREGISTERED

#define	ESOS_IRQ_HWXXX_U1TX

#define	ESOS_IRQ_HWXXX_U1RX

#define	ESOS_IRQ_HWXXX_U1E

#define	__GET_IRQ_ATTRIB(Q) __xGET_IRQ_ATTRIB(Q)

#define	__GET_IVTQ(Q) __xGET_IVT(Q)

#define	__GET_IFS_NUM(Q) __xGET_IFS_NUM(Q)

#define	__GET_IFS_BITNUM(Q) __xGET_IFS_BITNUM(Q)

#define	__GET_IEC_NUM(Q) __xGET_IFS_NUM(Q)

#define	__GET_IEC_BITNUM(Q) __xGET_IFS_BITNUM(Q)

#define	__GET_IPC_NUM(Q) __xGET_IPC_NUM(Q)

#define	__GET_IPC_BITNUM(Q) __xGET_IPC_BITNUM(Q)

#define	__xGET_IRQ_ATTRIB(attrib, ivt, ifsr, ifsb, ipcr, ipcb) attrib

#define	__xGET_IVT(attrib, ivt, ifsr, ifsb, ipcr, ipcb) ivt

#define	__xGET_IFS_NUM(attrib, ivt, ifsr, ifsb, ipcr, ipcb) ifsr

#define	__xGET_IFS_BITNUM(attrib, ivt, ifsr, ifsb, ipcr, ipcb) ifsb

#define	__xGET_IEC_NUM(attrib, ivt, ifsr, ifsb, ipcr, ipcb) ifsr

#define	__xGET_IEC_BITNUM(attrib, ivt, ifsr, ifsb, ipcr, ipcb) ifsb

#define	__xGET_IPC_NUM(attrib, ivt, ifsr, ifsb, ipcr, ipcb) ipcr

#define	__xGET_IPC_BITNUM(attrib, ivt, ifsr, ifsb, ipcr, ipcb) ipcb

#define	__GET_IPL_FROM_IPCX(Q) ((*(&IPC0+(__xGET_IPC_NUM(Q))) >> __xGET_IPC_BITNUM(Q))&0x7)

#define	__IS_IPL_FROM_IPCX(Q, val) ((__GET_IPL_FROM_IPCX(Q))==(val))

#define	__PUT_IPL_INTO_IPCX(ipc, ipcb, ipl)

#define	ESOS_UNREGISTER_HWXXX_USER_INTERRUPT(desc)

#define	__xUNREGISTER_HWXXX_USER_INTERRUPT(attrib, ivt, ifsr, ifsb, ipcr, ipcb)

#define	ESOS_REGISTER_HWXXX_USER_INTERRUPT(desc, ipl, p2f)

#define	__xREGISTER_HWXXX_USER_INTERRUPT(attrib, ivt, ifsr, ifsb, ipcr, ipcb, ipl, p2f)

#define	ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS()

#define	ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS()

#define	ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED(desc)

#define	__xIS_HWXXX_USER_INTERRUPT_ENABLED(attrib, ivt, ifsr, ifsb, ipcr, ipcb) IS_BIT_SET(*(&IEC0+ifsr),ifsb)

#define	ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING(desc)

#define	__xDOES_HWXXX_USER_INTERRUPT_NEED_SERVICING(attrib, ivt, ifsr, ifsb, ipcr, ipcb) IS_BIT_SET(*(&IFS0+ifsr), ifsb)

#define	ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED(desc)

#define	__xMARK_HWXXX_USER_INTERRUPT_SERVICED(attrib, ivt, ifsr, ifsb, ipcr, ipcb) BIT_CLEAR(*(&IFS0+ifsr),ifsb)

#define	ESOS_ENABLE_HWXXX_USER_INTERRUPT(desc)

#define	__xENABLE_HWXXX_USER_INTERRUPT(attrib, ivt, ifsr, ifsb, ipcr, ipcb) BIT_SET(*(&IEC0+ifsr), ifsb)

#define	ESOS_DISABLE_HWXXX_USER_INTERRUPT(desc)

#define	__xDISABLE_HWXXX_USER_INTERRUPT(attrib, ivt, ifsr, ifsb, ipcr, ipcb) BIT_CLEAR(*((&IEC0)+ifsr), ifsb)

Detailed Description

This file contains routines which define, configure and allow use of hardware interrupts on the target hardware (hwxxxx)

Definition in file esos_hwxxx_irq.h.

Macro Definition Documentation

◆ __PUT_IPL_INTO_IPCX

#define __PUT_IPL_INTO_IPCX	(	ipc,
		ipcb,
		ipl
	)

Value:

    do {                                                            \
    BIT_CLEAR_MASK( (*((&IPC0)+(ipc))), ((0x07<<ipcb) + (ipl<<ipcb)));  \
    (*((&IPC0)+ipc)) += (ipl<<ipcb); \
      }while(0)

Definition at line 2122 of file esos_hwxxx_irq.h.

◆ __xREGISTER_HWXXX_USER_INTERRUPT

#define __xREGISTER_HWXXX_USER_INTERRUPT	(	attrib,
		ivt,
		ifsr,
		ifsb,
		ipcr,
		ipcb,
		ipl,
		p2f
	)

Value:

   do {                                               \
      __xDISABLE_HWXXX_USER_INTERRUPT(attrib, ivt, ifsr, ifsb, ipcr, ipcb);   \
      __PUT_IPL_INTO_IPCX(ipcr, ipcb, ipl);   \
   }while(0)

Definition at line 2172 of file esos_hwxxx_irq.h.

◆ __xUNREGISTER_HWXXX_USER_INTERRUPT

#define __xUNREGISTER_HWXXX_USER_INTERRUPT	(	attrib,
		ivt,
		ifsr,
		ifsb,
		ipcr,
		ipcb
	)

Value:

  do{                                               \
  __xDISABLE_HWXXX_USER_INTERRUPT(attrib, ivt, ifsr, ifsb, ipcr, ipcb);               \
  __PUT_IPL_INTO_IPCX(ipcr,ipcb, __ESOS_USER_IRQ_UNREGISTERED);      \
  }while(0)

Definition at line 2145 of file esos_hwxxx_irq.h.

◆ ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS

#define ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS ( )

Disables all registered user interrupts.

Note: This function does NOT disable all interrupts. Interrupts used by ESOS will continue to function.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2193 of file esos_hwxxx_irq.h.

◆ ESOS_DISABLE_HWXXX_USER_INTERRUPT

#define ESOS_DISABLE_HWXXX_USER_INTERRUPT ( desc )

Disables the user interrupt denoted by the interrupt descriptor

Parameters

desc	Descriptor of the hardware interrupt

Note: Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2307 of file esos_hwxxx_irq.h.

◆ ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING

#define ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING ( desc )

Queries the "flag" state of user interrupt denoted by the interrupt descriptor

Parameters

desc	Descriptor of the hardware interrupt

Return values

TRUE	If the user interrupt is needs to be serviced
FALSE	Otherwise

Note: Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2250 of file esos_hwxxx_irq.h.

◆ ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS

#define ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS ( )

Enables all registered user interrupts.

Note: Does not affect interrupts used by ESOS

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2209 of file esos_hwxxx_irq.h.

◆ ESOS_ENABLE_HWXXX_USER_INTERRUPT

#define ESOS_ENABLE_HWXXX_USER_INTERRUPT ( desc )

Enables the user interrupt denoted by the interrupt descriptor

Parameters

desc	Descriptor of the hardware interrupt

Note: Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2288 of file esos_hwxxx_irq.h.

◆ ESOS_IRQ_HWXXX_U1E

#define ESOS_IRQ_HWXXX_U1E

UART1 Error Event Interrupt (User interrupt descriptor)

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Note: Only defined if ESOS is built without the communications subsystem.

Definition at line 1429 of file esos_hwxxx_irq.h.

◆ ESOS_IRQ_HWXXX_U1RX

#define ESOS_IRQ_HWXXX_U1RX

UART1 RX Event Interrupt (User interrupt descriptor)

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Note: Only defined if ESOS is built without the communications subsystem.

Definition at line 1412 of file esos_hwxxx_irq.h.

◆ ESOS_IRQ_HWXXX_U1TX

#define ESOS_IRQ_HWXXX_U1TX

UART1 TX Event Interrupt (User interrupt descriptor)

Note: Only defined if ESOS is built without the communications subsystem.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 1396 of file esos_hwxxx_irq.h.

◆ ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED

#define ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED ( desc )

Queries the enabled state of user interrupt denoted by the interrupt descriptor

Parameters

desc	Descriptor of the hardware interrupt

Return values

TRUE	If the user interrupt is currently enabled
FALSE	If the user interrupt is currently disabled

Note: Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2229 of file esos_hwxxx_irq.h.

◆ ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

#define ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED ( desc )

Tells ESOS to mark the user interrupt denoted by the interrupt descriptor as being serviced

Parameters

desc	Descriptor of the hardware interrupt

Note: Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2269 of file esos_hwxxx_irq.h.

◆ ESOS_REGISTER_HWXXX_USER_INTERRUPT

#define ESOS_REGISTER_HWXXX_USER_INTERRUPT	(	desc,
		ipl,
		p2f
	)

Registers the user interrupt denoted by the interrupt descriptor

Parameters

desc	Descriptor of the hardware interrupt
ipl	Interrupt Priority Level (IPL) for the interrupt being registered
p2f	Pointer to function to serve as the ISR. Function must have void arguments and return void

Note: Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2171 of file esos_hwxxx_irq.h.

◆ ESOS_UNREGISTER_HWXXX_USER_INTERRUPT

#define ESOS_UNREGISTER_HWXXX_USER_INTERRUPT ( desc )

Unregisters the user interrupt denoted by the interrupt descriptor

Parameters

desc	Descriptor of the hardware interrupt

Note: Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_USER_INTERRUPT; ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 2144 of file esos_hwxxx_irq.h.

◆ ESOS_USER_INTERRUPT

#define ESOS_USER_INTERRUPT ( desc )

Declaration of an ESOS interrupt.

This macro is used to declare an ESOS user inerrupt. All ESOS user interrupt tasks must be declared with this macro.

Parameters

desc	Descriptor of the hardware interrupt

Note: ESOS user interrupts have no arguments passed in and cannot return values.; Hardware interrupt descriptors are found in the file esos_hw_irq.h where hw is the name of the chip for the ESOS port has been written.

See also: ESOS_REGISTER_HWXXX_USER_INTERRUPT; ESOS_UNREGISTER_HWXXX_USER_INTERRUPT; ESOS_ENABLE_HWXXX_USER_INTERRUPT; ESOS_DISABLE_HWXXX_USER_INTERRUPT; ESOS_ENABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_DISABLE_ALL_HWXXX_USER_INTERRUPTS; ESOS_IS_HWXXX_USER_INTERRUPT_ENABLED; ESOS_DOES_HWXXX_USER_INTERRUPT_NEED_SERVICING; ESOS_MARK_HWXXX_USER_INTERRUPT_SERVICED

Definition at line 75 of file esos_hwxxx_irq.h.

◆ ESOS_USER_IRQ_LEVEL1

#define ESOS_USER_IRQ_LEVEL1

Highest priority user interrupt level on PIC24 Family

See also: ESOS_REGISTER_HWXXX_USER_INTERRUPT

Definition at line 93 of file esos_hwxxx_irq.h.

◆ ESOS_USER_IRQ_LEVEL2

#define ESOS_USER_IRQ_LEVEL2

Second-highest priority user interrupt level on PIC24 Family

See also: ESOS_REGISTER_HWXXX_USER_INTERRUPT

Definition at line 99 of file esos_hwxxx_irq.h.

◆ ESOS_USER_IRQ_LEVEL3

#define ESOS_USER_IRQ_LEVEL3

Third-highest priority user interrupt level on PIC24 Family

See also: ESOS_REGISTER_HWXXX_USER_INTERRUPT

Definition at line 105 of file esos_hwxxx_irq.h.

◆ ESOS_USER_IRQ_LEVEL4

#define ESOS_USER_IRQ_LEVEL4

Lowest priority user interrupt level on PIC24 Family

See also: ESOS_REGISTER_HWXXX_USER_INTERRUPT

Definition at line 111 of file esos_hwxxx_irq.h.
